GripTight MAX® Test Plug
Patented dual-serrated gripper for safe testing up to 15,000 PsiG.
Patented dual-serrated gripper design for safe and reliable testing at high pressures up to 15,000 PsiG (1,034 BarG). Highly effective for testing high pressure piping systems, high alloy hardened pipe materials and down-hole or well-head piping, and for non-metallic materials including fiberglass reinforced plastic (FRP) and glass reinforced epoxy (GRE).
ACTS is Pop-A-Plug® & GripTight®’s sole agent in Egypt, supplying the GripTight MAX® Test Plug to oil & gas, petrochemical and power generation plants nationwide from our office in Sheikh Zayed City, Giza. Sizing and selection are handled by our own application engineers, with aftermarket support and technical services once the unit is in service.
- Save time and money by eliminating welding and weld-on end caps
- Safe: no hot work permitting required
- Self-gripping design increases grip as pressure increases
- Reusable, for hydrostatic or pneumatic testing
- Dual-serrated grippers give more gripping points on the pipe ID
| Test Pressure | Up to 15,000 PsiG (1,034 BarG); higher on request |
|---|---|
| Size Range | 3/8" to 48" NPS (DN10 to DN1200); custom sizes on request |
| Standard Seal | Urethane; alternate materials available |
Specifications transcribed from the manufacturer datasheet. Confirm final selection with the product catalog or on request.
From Curtiss-Wright’s official YouTube channel.
Product Overview: GripTight Test and Isolation Plugs
GripTight MAX® Test Plug
GripTight MAX High Pressure Test Plug
Installation and Removal: GripTight MAX® Test Plug
Preparation for Installation: GripTight MAX® Test Plug
Cleaning and Storage: GripTight MAX® Test Plug
Seal Replacement: GripTight MAX® Test Plug

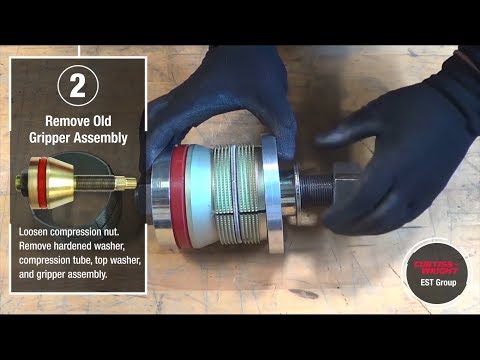

Gripper Assembly Replacement: GripTight MAX® Test Plug
Documentation on request
Product-specific literature for the GripTight MAX® Test Plug is available on request, or browse the Engineering Resource Center.
Browse Resource CenterNeed a GripTight for your project?
Sized, quoted, and answered by an engineer
Send us your requirement and one of our application engineers will follow up, typically within one business day.
